A compact, lightweight gyroscopic survey system that profiles full blast-hole trajectories in minutes, deployable at any inclination with the Gyro PushRodder and simple enough for any operator on day one.

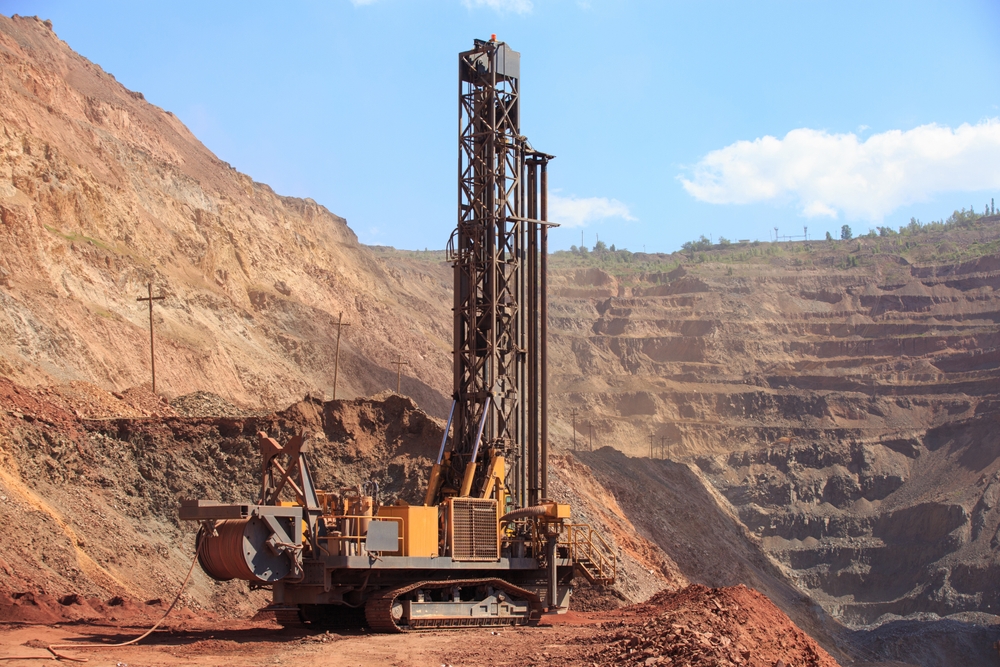

In blasting operations, borehole deviation leads to excess explosive use, ore dilution, overbreak, and flyrock, cutting recovery per ton and driving up operating costs.
Lost accuracy can trigger blasts in unintended areas, destabilize the face, and endanger crews, increasing exposure to collapses, serious accidents, and environmental damage. Every misaligned hole compounds risk, rework, and delays.

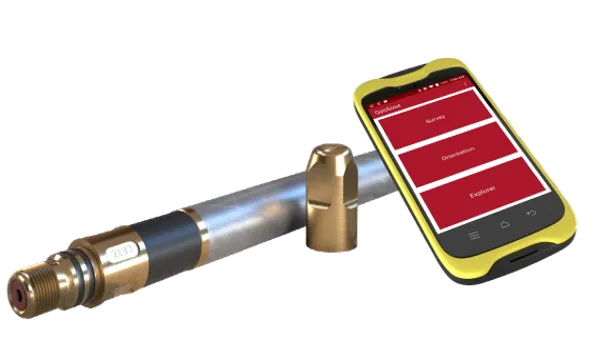

GyroScout™ is purpose-built for blast-hole QA/QC: a rugged, ultra-light system that surveys the entire trajectory in minutes without slowing drilling. At ~95 cm and ~2.4 kg, it delivers continuous, precise gyroscopic surveys from the collar at any angle, thanks to the Gyro PushRodder deployment system.
Intuitive to run, any operator can capture accurate, traceable data fast—reducing dilution, tightening control, and improving safety across the blast plan.
Perform fast, continuous directional surveys from the collar, recording a complete, high-resolution trajectory for immediate QA/QC.
Cover long blast holes in minutes without operational delays—keep drilling and blasting schedules tight and predictable.
Immune to magnetic interference, delivering dependable azimuth and dip readings in challenging geology where magnetic tools struggle.

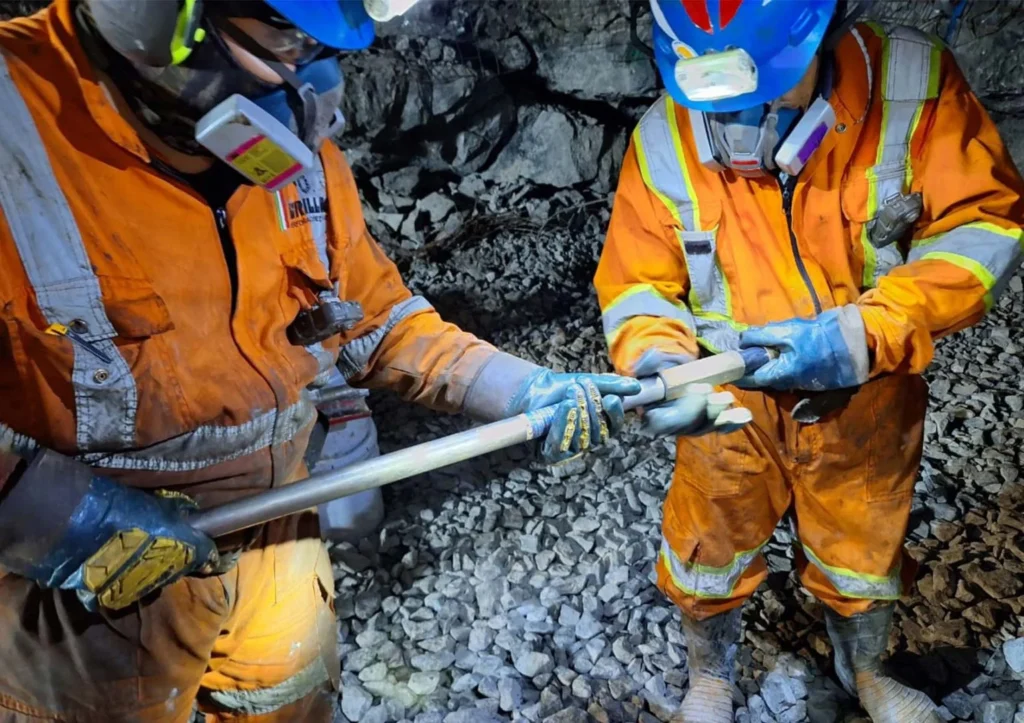

Rugged, ultra-light design is easy to carry and deploy across the pit or underground, reducing crew fatigue and setup time.
Intuitive from day one—no complex training required. Operators follow simple prompts to capture accurate, repeatable results.
NaviBlast™ software is optimized for blasting workflows, generating traceable, auto-formatted reports ready for audit and handoff.
PushRodder system with wireless depth counter enables controlled insertion and synchronized depth tracking for precise surveys.
Gyroscope for continuous trajectory surveying. Maximum speed and portability for blast hole QA/QC.
| Dimensions | |
|---|---|
|
Outer Diameter |
32 mm (1.25″)
|
|
Length |
950 mm (37.4″)
|
|
Weight |
2.6 kg (5.73 lbs)
|
| Operational Environment | |
|---|---|
|
Depth Pressure |
2900 psi
|
|
Operational Temperature |
-10°C – +60°C (+14°F – +140°F)
|
| Performance | |
|---|---|
|
Azimuth Accuracy |
0.16° |
|
Inclination Accuracy |
0.05°
|
|
Typical Positional Accuracy |
0.3%** |
|
Gravity Toolface Accuracy |
0.08° |
|
Azimuth Range |
0° – 360° |
|
Inclination Range |
-90° – +90° |
|
Toolface Range |
0° – 360° |
| Data | |
|---|---|
|
Survey Report |
At any interval
|
|
Communications |
Bluetooth® |
|
Export |
SPT SmartCloud via WIFI or 4G LTE |
|
Export Format |
PDF, Excel, CSV, LAS, DXF |
|
Graphic Generation |
2D, 3D |
| Battery | |
|---|---|
|
Battery Type |
Lithium Ion Rechargeable |
|
Operating Time |
24 hrs
|
| Handheld Device | |
|---|---|
|
Battery |
20 hrs (8580 mAh) |
|
IP Rating |
IP68, IP69K |
Get a Rental Quote or Buy a GyroMaster™ for Upcoming Survey Projects

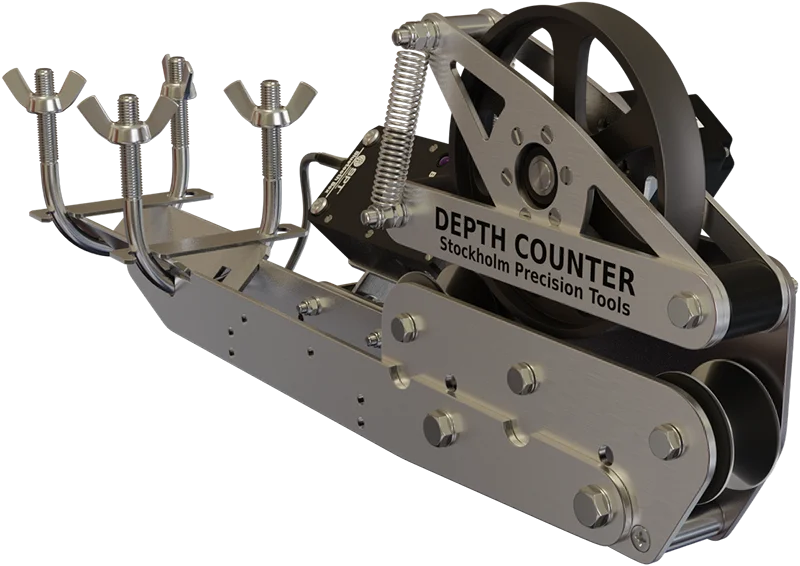

Measure and sync depth data in uphole boreholes, with precise and stable deployment.

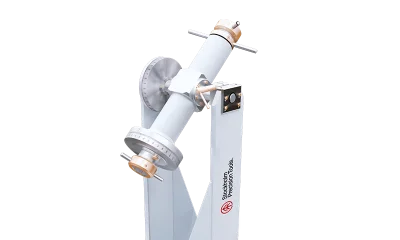

Verify your tool’s calibration without downtime or transport
