Capture true structural detail with a high-definition optical televiewer, equipped with precision imaging and orientation sensors to deliver accurate, reliable borehole insights across diverse geological conditions.
In mining and geotechnical operations, poor borehole visibility is more than a technical issue. It’s a costly barrier to accurate interpretation. When imaging lacks clarity, geological features become difficult to define, structural analysis loses reliability, and project timelines extend unnecessarily.
Traditional inspection methods struggle in varying borehole conditions, producing low-resolution visuals and incomplete orientation data, leading to misinterpretation, repeated surveys, and uncertainty in your geological results.
The Optical Televiewer eliminates uncertainty by delivering clear, high-resolution borehole imaging with precise orientation data. Powered by advanced optical and sensor technology, it captures continuous visual data in real time, even in challenging geological conditions.
Whether your borehole is dry, water-filled, vertical, or angled, the Optical Televiewer ensures every image is detailed, traceable, and easy to interpret.
The result? Reliable structural insights, faster geological analysis, and reduced operational costs.
Captures detailed 360° borehole images with true-color clarity.
Delivers accurate dip and azimuth data for structural analysis.
Integrated magnetometers and accelerometers ensure reliable orientation.
Operates in dry and water-filled holes across varied diameters.
Supports fracture detection and lithology characterization.
Adds lithological data for enhanced interpretation and correlation.
Using GyroMaster and Core Retriever for Gyro Survey | True North Seeking Gyro with Continuous Mode
| Specifications | |
|---|---|
|

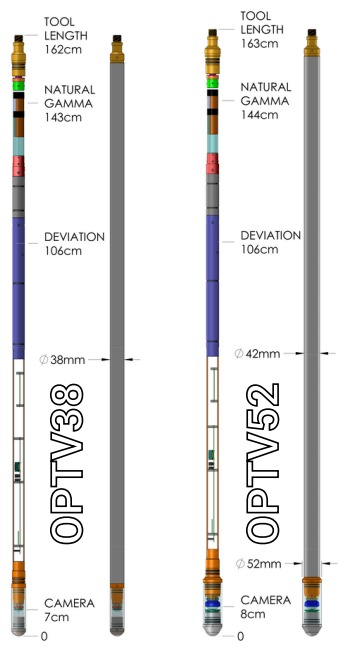

Diameter |
38mm/52mm |
|
Weight |
7kg |
|
Housing |
Titanium and brass non-magnetic |
|
Length |
1630 mm |
|
Temp / pressure max |
60°C / 100 bar |
| Sensors Parameters | |
|---|---|
|
Camera sensor |
1 280 x 1 024 pixels CMOS |
|
Horizontal definition |
360/540/720/900/1080/1260/1440 pixels |
|
Orientation |
triple magnetometers / accelerometers |
|
Picture format |
24 bit RGB |
|
Vertical definition |
unlimited (defined to logging speed) |
|
Orientation accuracy |
± 0.5° dipping ; ± 1° azimuth |
| Options & Accessories | |
|---|---|
|
Gamma ray sensor |
ø25 x 50 mm NaI(Tl) crystal |
|
High pressure version |
ø62 mm / 200 bar (± 2 000 m) |
|
Centralisers non-magnetic |
|
|
Image reference calibrator |
|
|
Supplementary sinker weight |
|
| Borehole Conditions | |
|---|---|
|
Recommended diameter range for OPTV38 |
60 to 300 mm |
|
Recommended diameter range for OPTV52 |
75 to 600 mm |
|
Hole dry or filled with clear water |
|
|
The probe must be centered |
|
Get a Rental Quote or Buy a GyroMaster™ for Upcoming Survey Projects
High-resolution borehole imaging for precise data, reduced uncertainty, and confident analysis.
